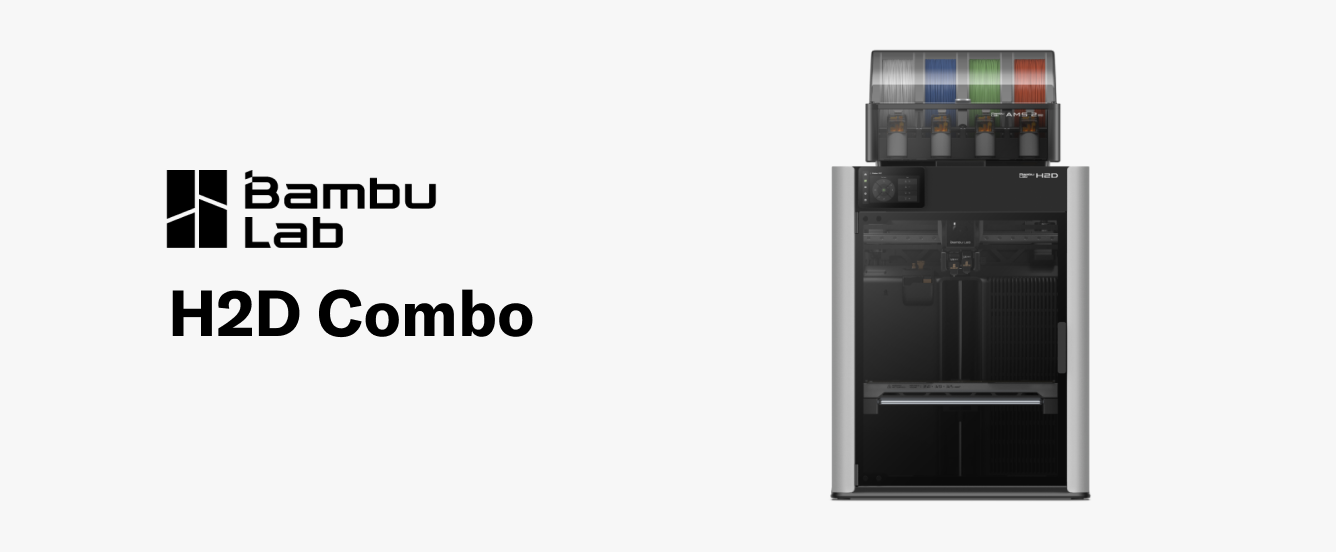

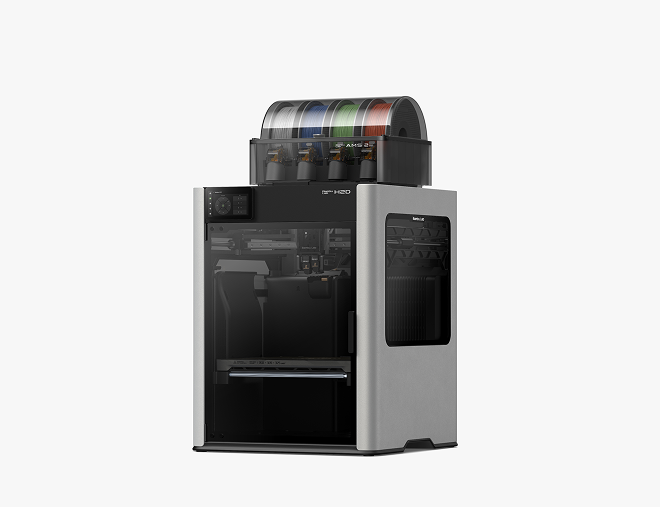

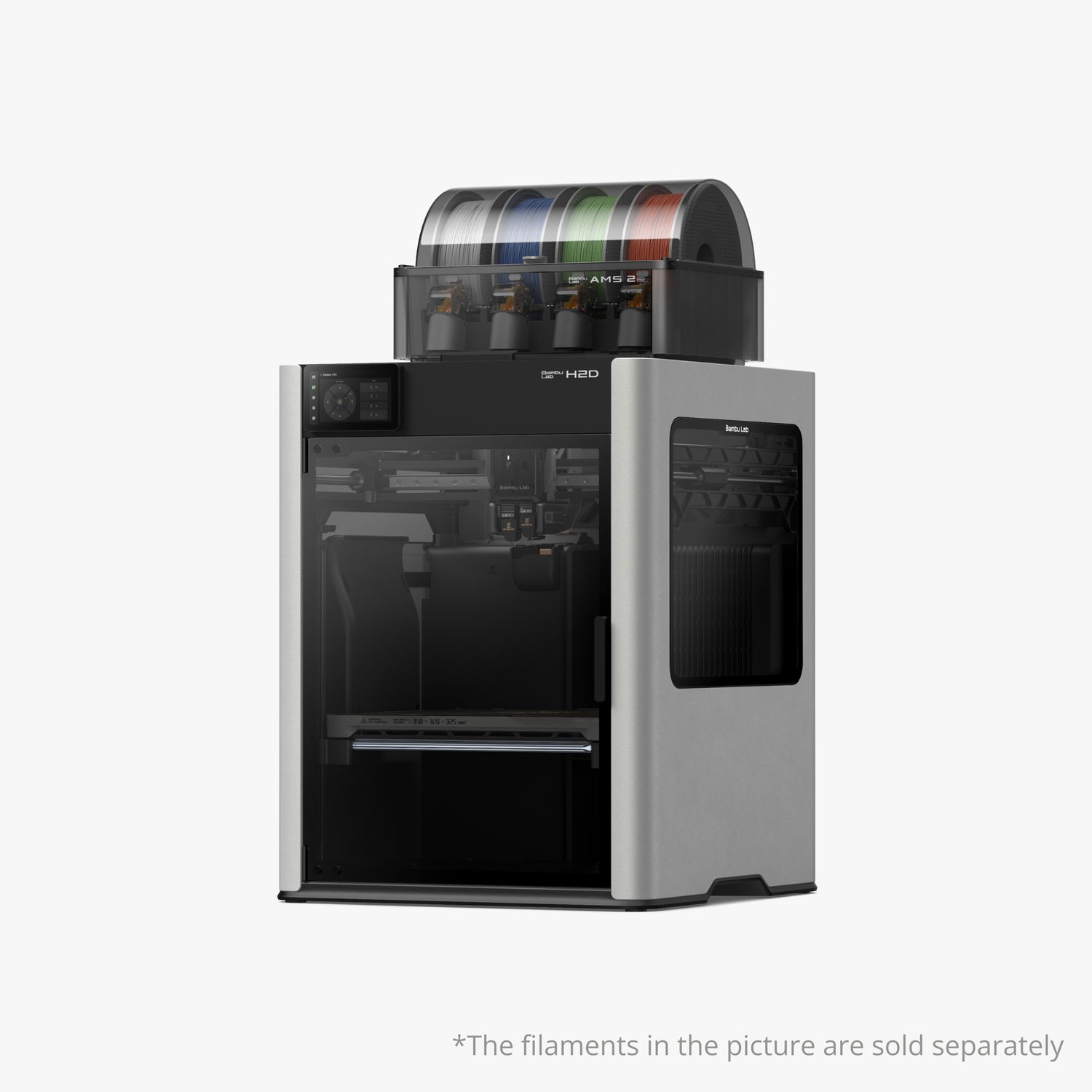

Bambu Lab H2D - Professional 3D Printer

The Bambu Lab H2D is a powerful, all-in-one desktop manufacturing machine, combining high-speed 3D printing compatible with AMS 2 Pro and optional 10W & 40W laser engraving and digital cutting. Designed for ultimate versatility, it features a dual-nozzle system that enables true multi-material printing—allowing users to combine flexible and rigid, low-cost and high-performance materials in a single print. This opens the door to complex interlocking designs and optimized material efficiency. With a spacious 350 × 320 × 325 mm³ build volume, closed-loop servo extruders for consistent output, and precision motion calibration at 5μm resolution, the H2D delivers industrial-grade results. Its 350°C nozzle and 65°C actively heated chamber ensure compatibility with advanced materials, making it ideal for professionals pushing the boundaries of creation.

---

Pre-Order Only – Expected Delivery Timelines

• H2D AMS Combo - Mid June 2025
• H2D & H2D Full Laser Full Combo - Shipping Timeline Not Yet Finalized

There is currently no confirmed delivery estimate for H2D & H2D Full Laser Full Combo. To secure your spot in the queue, we strongly suggest placing a pre-order, as orders will be fulfilled in the order they’re received.

---

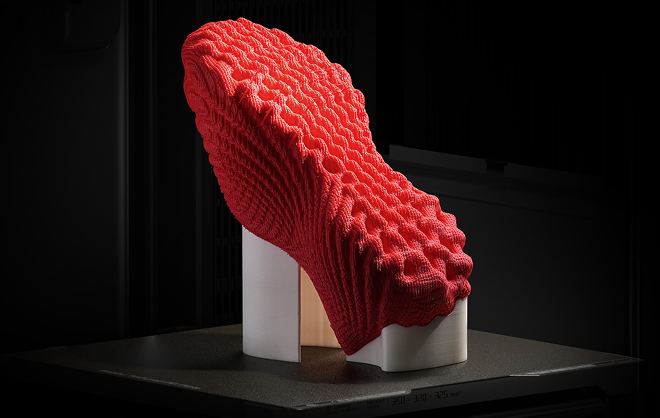

Explore Dual-Nozzle Capabilities

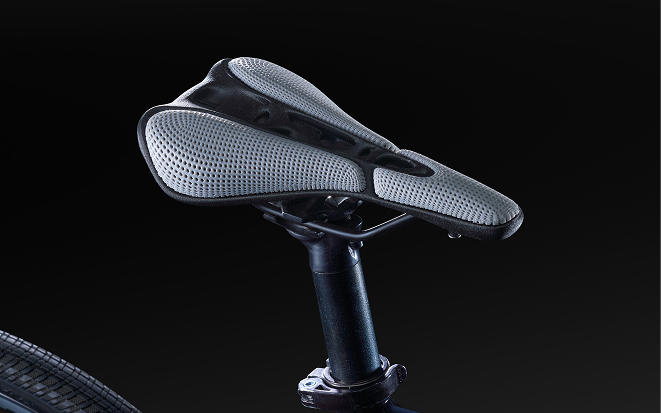

Multi-material Printing
Flexible and rigid, low cost and exotic materials in one print

Combine flexible and rigid materials in a single print to create impressive interlocking structures and innovative designs beyond traditional manufacturing. Pairing high-performance materials with standard ones further reduces costs and boosts material efficiency by using premium materials only where necessary.

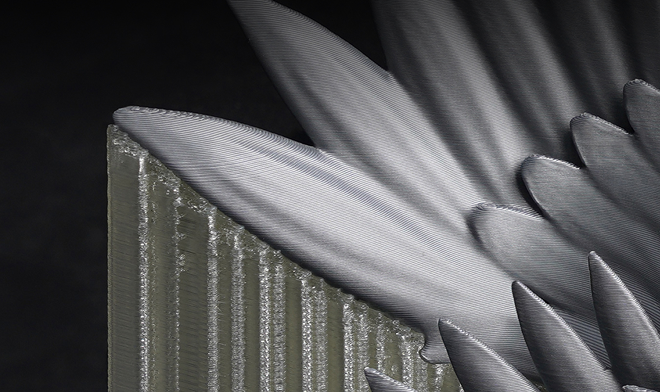

Dedicated Support Material
Perfect supports with minimal waste, purging and reloading

Print with support is no longer a headache. With H2D’s dual-nozzle setup, one nozzle can be reserved for dedicated support material, allowing secured print and perfect support interface.

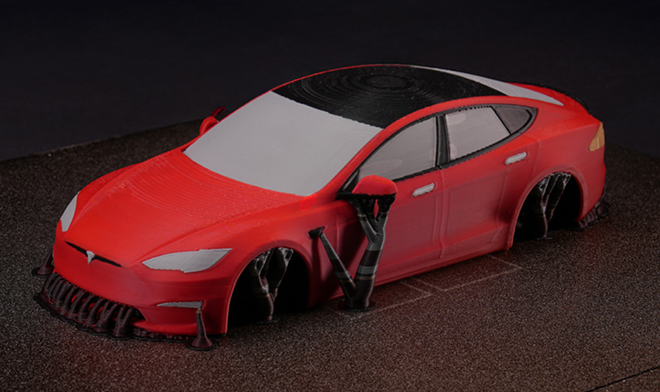

Efficient Multi-color Printing
Fast and efficient multi-color printing

Dual-nozzle printing reduces purge cycles in multi-color prints. H2D's smart algorithms optimize filament use, maximizing dual-nozzle efficiency to save time and materials.

All-in-one Solution For Personal Manufacturing

Laser
10W and 40W 455nm Laser for engraving & cutting

Digital Cutting
Precise cutting on variety of materials

Pen Drawing
Drawing and writing

Live Spatial Alignment
What-You-See-Is-What-You-Get

The H2D’s Birds Eye camera, combined with computer vision algorithms, delivers top-view alignment accuracy up to 0.3mm. This advanced spatial alignment allows users to place the tool path at the right position on the material – truly "what-you-see-is-what-you-get."*

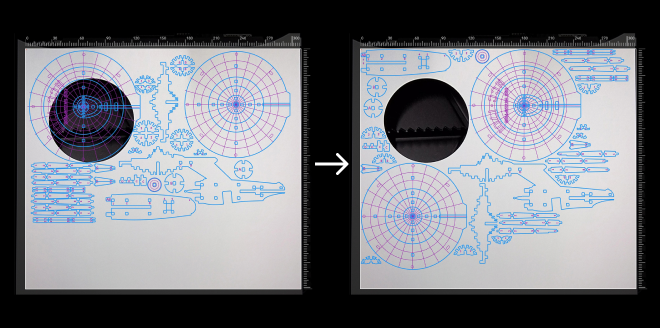

Auto Arrangement
Maximize material efficiency, minimize waste

Leveraging real-time images from the BirdsEye camera, Bambu Suite can automatically arrange your project according to the shape of your material, i.e left over plywood from the previous project. This feature helps you to get the most out of every material.

Don’t Worry About Safety – We’ve Got You Covered

Laser Safety Windows

Operate and monitor laser projects safely without the need for goggles, thanks to our safety windows.

Air Purifier

An optional air purifier ensures clean air, even during indoor laser operations.*

Don’t Worry About the Settings – We’ve Got It Covered

Full-auto Calibration

A single tap initiates automated laser focus verification and material measurement, eliminating manual adjustments.

Material CodeSync

The H2D automatically scans the QR code on your material to load the perfect preset.*

A Serious Laser Machine

Air Assist

Improve surface quality by directing high-speed air to cool the laser path, ensuring cleaner and more precise results.

Contact-less 3D Mesh*

Advanced optical height measurement creates a detailed 3D mesh without physical contact, enabling precise laser work on curved surfaces.

Go Big, Go Fast, Go Precise

Our Secret Weapon:Vision Encoder
50µm ultra-fine motion accuracy*

An ultra-accurate vision encoder plate, combined with 5µm resolution optical measurements to track and correct toolhead motion, enables the H2D to achieve consistent and reliable distance-independent 50μm motion accuracy across the entire workspace, one order of magnitude better than its predecessor. (*Vision Encoder sold separately)

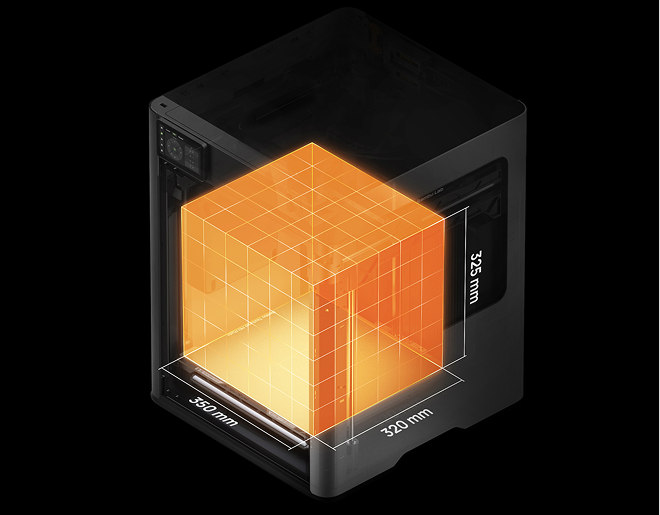

King-size Work Zone
Break free from size constraints

With a print volume up to 350mm×320mm×325mm*, creating large-scale projects has never been easier! From laser engraving on sizable objects to printing oversized models, the expanded capacity empowers you to bring even your most ambitious ideas to life.

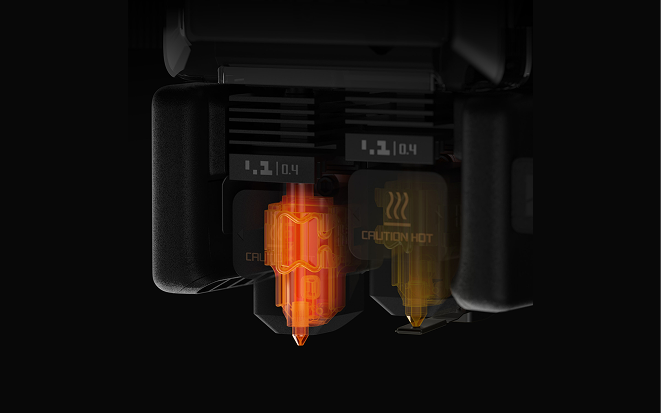

350°C Hotend & 65°C Chamber Heating
Unleash the full potential of high-performance materials

Equipped with 65°C active chamber heating and a high-temperature hotend reaching up to 350°C, the H2D delivers precise closed-loop temperature control. This advanced system effectively eliminates warping and deformation in high-performance materials, ensuring superior layer bonding and maximizing their full potential.

REAL High-Flow Hotend*
Consistently print at 600mm/s with ease

The H2D’s purpose-built high-flow hotend ensures reliable, high-speed printing at 600mm/s. Designed for consistent performance, it eliminates mid-print flow rate restrictions, enabling uninterrupted high-speed printing regardless of the print size or complexity.*

DynaSense Extruder
Intelligent sensing for precise extrusion control

Bambu Lab's proprietary PMSM servo architecture establishes an intelligent extrusion governance system. It executes 20kHz Torque/Resistance and position sampling to dynamically modulate electromagnetic torque vectors. Stabilizing extrusion and detecting filament grinding and clogging.

Nozzle Camera
Monitor extrusion at the nozzle tip

The H2D features an AI-backed nozzle camera with macro lens. This intelligent monitoring system continuously tracks extrusion patterns, immediately detecting material accumulation, filament deviations, and extrusion failures.

Pre-Flight Checklist by AI
Peace of mind, every time you print

Prior to each operational cycle, H2D's vision system initiates a comprehensive pre-flight checklist: Chamber Integrity Scan – Detects debris across the entire print surface. Hardware Configuration Audit – Instantly identifies nozzle dimensions and build plate properties. Digital-Physical Alignment – Automatically verifies consistency between detected hardware specifications and active slicer parameters.

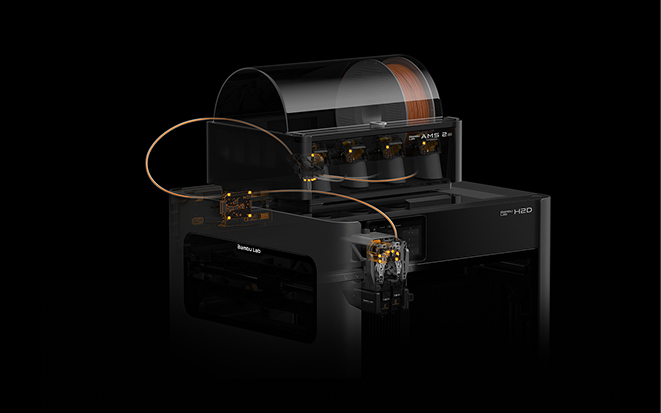

SOTA Filament Monitoring
15 sensors on one filament path

Unlike legacy systems with single filament run-out detectors, the H2D features comprehensive material flow monitoring. Throughout the AMS-to-nozzle path, 15 strategic sensors form an intelligent network, continuously tracking five key parameters: feeding velocity, tension, filament tip location, extruder thermal environment, and dynamic extrusion pressure. This establishes an industry-leading filament behavior control system.

---

Unboxing video

Note

• 2 servo motors include the one on the AMS 2 Pro.
• 3D mesh feature will be available shortly after the product release through firmware update.
• Rotary Attachment is an optional equipment will be available soon, buy at official store.
• Air Purifier is an optional equipment, buy at official store.
• BirdsEye camera is only equipped with H2D laser edition, or can be added with laser upgrade kit.
• Material CodeSync only works with Bambu official materials.
• The optional Vision Encoder is required for Motion Accuracy Enhancement.
• Auto Holes-contour Compensation must be enabled in Bambu Studio, and designated Bambu filament must be used.
• 350mm×320mm×325mm print volume is enable by using identical filaments in both nozzles and print with both nozzles.
• High-flow Hotends are optional equipment, buy at official store.
• The 600mm/s print speed referring is by using Bambu PLA Matte filament.
• Auto Fire Extinguisher is an optional equipment, will be available soon after the product release.
• Due to safety protocol, Developer mode cannot be enabled when using Laser and Cutting functions.

---

Bambu Lab H2D Specifications
Printing Technology	Fused Deposition Modeling
Build Volume	Single Nozzle: 325 x 320 x 325 mm³ Dual Nozzle: 300 x 320 x 325 mm³ Total Volume for Two Nozzle: 350 x 320 x 325 mm³
Chassis & Shell	Aluminum, Steel, Plastic, and Glass
Laser Safety Windows	Equipped on Laser Edition; upgradable via Laser Upgrade Kit
Air Assist Pump	Equipped on Laser Edition; upgradable via Laser Upgrade Kit
Physical Dimensions	492 x 514 x 626 mm³
Net Weight	31 Kg
Toolhead
Hot End	All-Metal
Extruder Gear	Hardened Steel
Nozzle	Hardened Steel
Max Nozzle Temperature	350 °C
Nozzle Diameter (Included)	0.4 mm
Nozzle Diameter (Supported)	0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filament Diameter	1.75 mm
Extruder Motor	Bambu Lab High-precision Permanent Magnet Synchronous Motor
Heatbed
Supported Build Plates	Textured PEI, Smooth PEI
Max Heatbed Temperature	120 °C
Speed & Flow
Max Toolhead Speed	1000 mm/s
Max Toolhead Acceleration	20,000 mm/s²
Max Flow (Standard Hotend)	40 mm³/s
Max Flow (High Flow Hotend)	65 mm³/s
Chamber & Air Management
Active Chamber Heating	Supported (Max 65 °C)
Air Filtration	G3 Pre-filter, H12 HEPA, Coconut Shell Activated Carbon
Cooling Fans
Part Cooling Fan	Closed Loop Control
Auxiliary Fan	Closed Loop Control
Chamber Circulation Fan	Closed Loop Control
Hotend Cooling Fan	Closed Loop Control
Control Board Fan	Closed Loop Control
Exhaust Fan	Closed Loop Control
Filament Compatibility
Materials Supported	PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA/PETG/PA/PC/ABS/ASA/PPA-CF/GF, PPS, PPS-CF/GF
Sensors & Recovery
Live View Camera	1920 x 1080 (Built-in)
Nozzle Camera	1920 x 1080 (Built-in)
BirdsEye Camera	3264 x 2448 (Laser Edition)
Toolhead Camera	1920 x 1080
Door Sensor	Supported
Filament Sensors	Run Out, Tangle, Odometry (with AMS)
Power Loss Recovery	Supported
Electrical & Control
Voltage	100–120 VAC / 200–240 VAC, 50/60 Hz
Max Power	2200 W@220V / 1320 W@110V
Touchscreen	5-inch, 720 x 1280
Storage	8 GB eMMC + USB Port
Control Interface	Touchscreen, Mobile App, PC App
Neural Processing Unit	2 TOPS
Software
Slicer	Bambu Studio, Suite, Handy (Supports PrusaSlicer, Cura, etc.)
Operating System	MacOS, Windows
Wi-Fi
Frequencies	2.4 GHz & 5 GHz Bands
Protocols	IEEE 802.11 a/b/g/n
Laser Module
Laser Type	Semiconductor (Blue & IR)
Laser Power	10 W ±1W; 40 W ±2W
Laser Spot Size	10W: 0.03 x 0.14 mm; 40W: 0.14 x 0.2 mm
Max Engraving Speed	10W: 400 mm/s; 40W: 1000 mm/s
Max Cutting Thickness	10W: 5 mm; 40W: 15 mm (Basswood)
Engraving Area	10W: 310 x 270 mm; 40W: 310 x 250 mm
Safety Class	Laser Module: Class 4; Overall: Class 1 (with protections)
Additional Safety	Door Sensor, Temperature, Flame Detection, Key Lock
Cutting Module
Cutting Area	300 x 285 mm²
Drawing Area	300 x 255 mm²
Pen Diameter	10.5–12.5 mm
Blade Type	45° x 0.35 mm
Cutting Pressure	50 gf–600 gf
Max Cutting Thickness	0.5 mm
Supported Materials	Paper, Vinyl, Leather, and more
