Technical Specifications

●XY Resolution：17*17μm
● Build Platform: Laser printing platform
● Exposure Screen: 7" High-Definition Screen
●LCD Resolution：10K (9024*5120px)
● Light Source: Parallel matrix upgrade Light Source
● Control Panel: 2.8''TFT touch-control
● Data Input: USB Type
● Machine Leveling: 4-point manual leveling
● Printing Speed: ≤ 50mm/hr. 1.97in/hr
● Printing Dimensions: 153 x 87 x 165 mm / 6.0 x 3.43 x 6.5 inches (LWH)
● Machine Size: 230 x 235 x 391 mm / 9.1 x 9.3 x 15.4 inches (LWH)
● Machine Weight: 4kg / 8.8lb
●Maximum print volume：2.2L

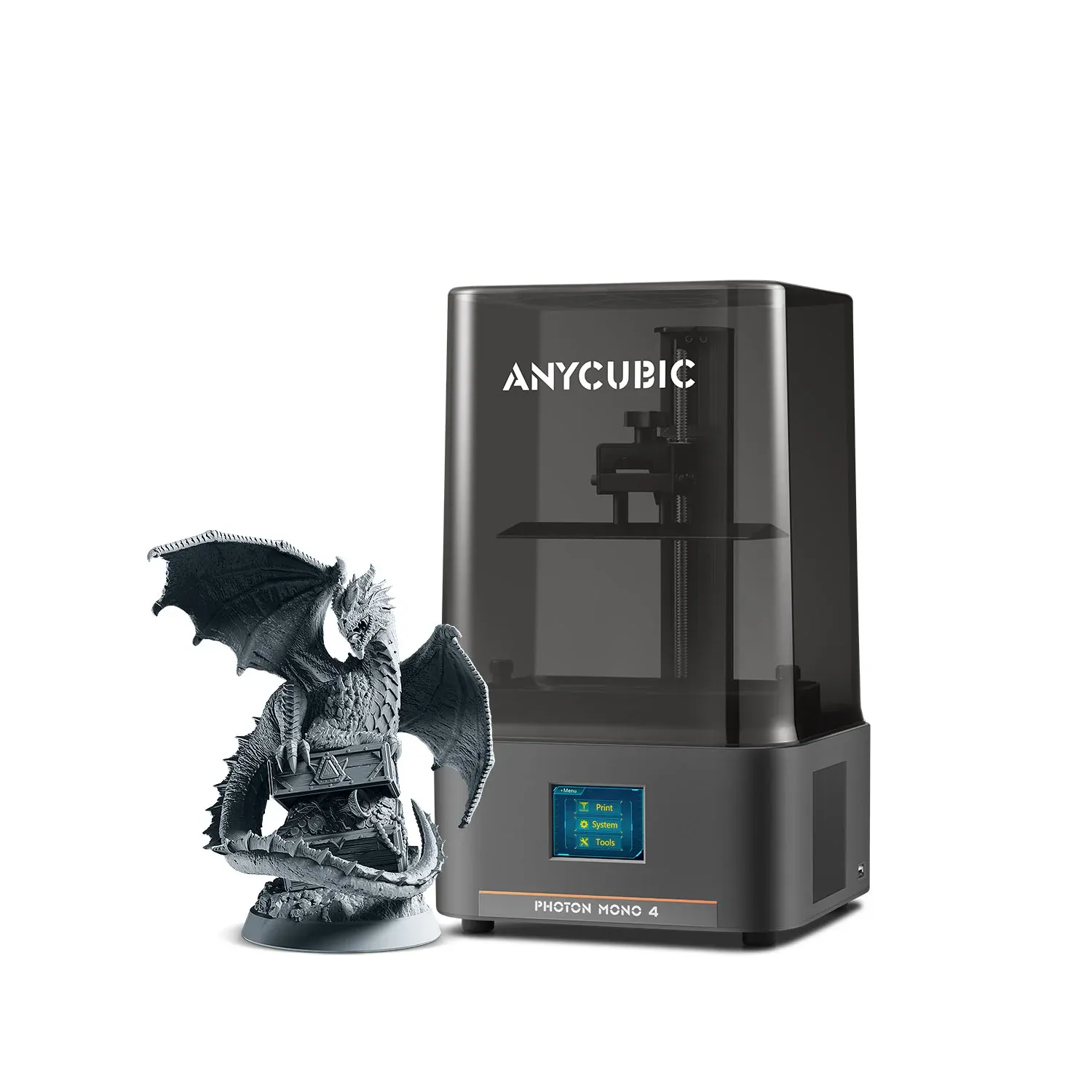

The Anycubic Mono 4 boasts an impressive 105% increase in print precision compared to its predecessor, improving from 35μm to just 17μm. With a resolution of 9024x5120, each pixel measures a mere17x17μm on the X and Y axes. This enhanced capability allows for creating models with exceptional detail and dynamic richness.

Exquisite, on Each Level & Every Pixel

The time-tested Anycubic LighTurbo matrix light source technology delivers stable, balanced, and uniform lighting to eliminate layer lines and rasterization, creating models with ultra-smooth surface and maximum print details. Single-layer exposure times cut down to just 1.5s to enhance print efficiency.

Dream Big, Think Big, Print Bigger

With a generous maximum print volume of 2.2L
(153.4mm*87mm*165mm), you have ample print space to easily tackle your daily tasks and demanding projects.

Details about the printer

More Cohesive Platform 2.0 + 4-Point Leveling Efficiency + Pick Up Where You Left Off + Activated Carbon Air Purifier

Interactive 3D Printing Ecosystem

*Massive model resources: Anycubic's self-operated excellent models from over 3000 designers worldwide.model library website, Makeronline, provides.

*Monetizing creative value: Users can easily earn gift cards and pointsby sharing their work or participating in printing theme contests. Experience exchange: Engage with 3D printing enthusiasts worldwide.

*Instant activation: If you have Anycubic Photon Workshop (vertical dimension slicer software) installed on your computer, simply download the model from Makeronline to one-click launch the slicing software and upload the generated slicing files to the printer through USB to complete printing.

Anycubic Photon Workshop Magic

*Fully Automated Support Generation: Intelligent analysis and optimization of support structures ensure 100% penetration-free models with smaller touchpoints for easier removal post-printing.

*Customizable Support Optimization: Move and edit supports.

*Smooth Layer Transitions: Anti-aliasing reduces layer lines,directly for personalized adjustments.making slopes and curves smoother.

Photon Mono 4 Series Specification

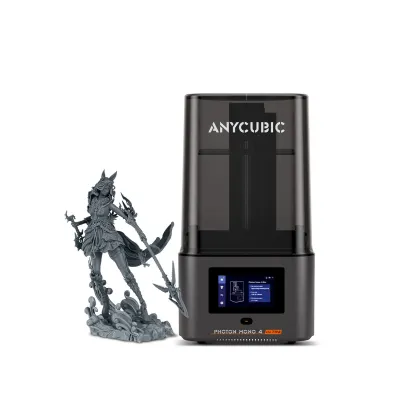

Anycubic Photon Mono 4 & Anycubic Photon Mono 4 Ultra

(*Based on the test results of Anycubic lab, for reference only.）

Empower your Creativity

The recommended print parameters for using Anycubic Photon Mono 4 with the Anycubic resin are set as follows

(*Based on the test results of Anycubic lab, for reference only.）
