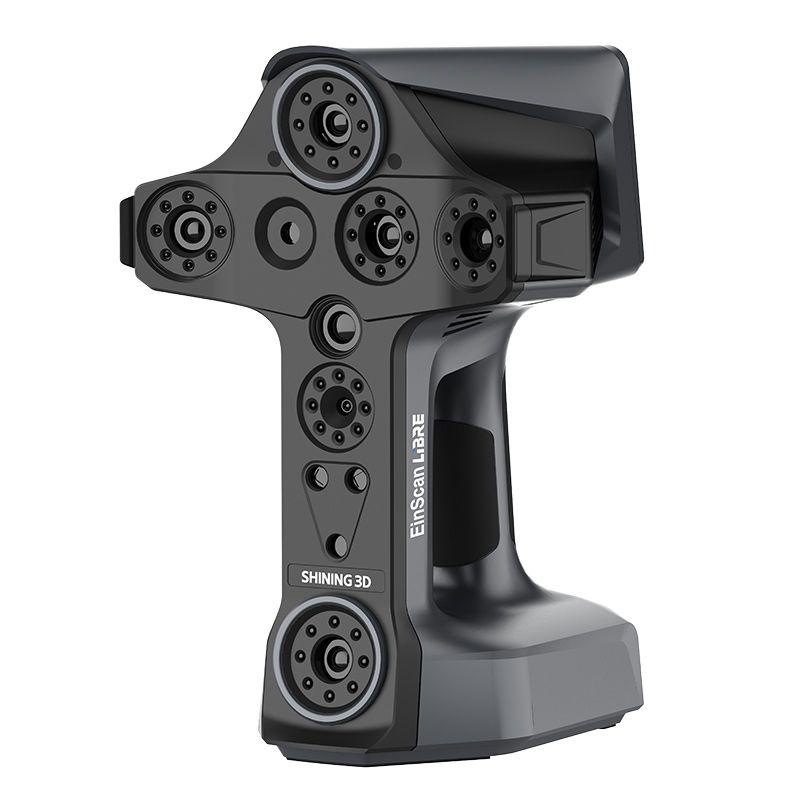

Shining 3D Einscan Libre - Handheld 3D Scanner

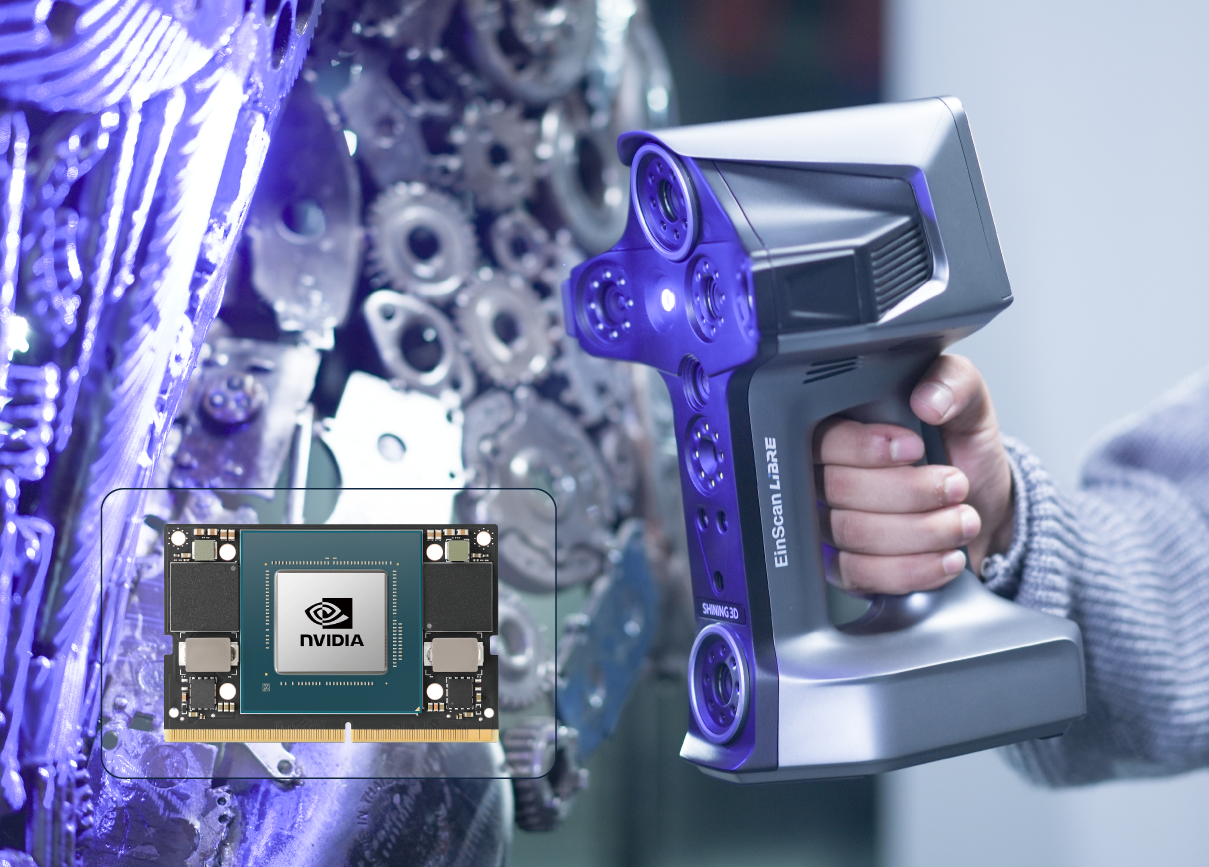

The Shining 3D EinScan Libre is a compact all-in-one laser 3D scanner providing a fully wireless, markerless, and full-color 3D scanning experience. The model is engineered with two light sources, combining the infrared VCSEL and Blue Laser scanning technologies in a single device. As a completely wireless solution powered by a large built-in touchscreen and potent NVIDIA processor, the Libre model offers the perfect balance of freedom and efficiency. The scanner does not require a powerful PC and provides a complete on-device workflow. It enables one to scan, edit, save, and share high-quality data through integrated EXScan Libre software, ensuring reliable results with versatile, user-friendly operation.

The EinScan Libre from Shining 3D boasts high-resolution accurate scans and fast acquisition speed. The flexible working distance allows scanning items of different sizes in two IR modes (VCSEL for long-range scanning) or Laser HD mode (Blue laser light source for short-range scanning). While the former is used for smoother experience in an unlimited environment, the latter boasts more stable scanning for capturing high-detail data with volumetric accuracy up to 0.04 + 0.06 mm/m. Thanks to multiple alignment options, the EinScan Libre can scan markerless or in combined mode (Feature+Marker+Texture) to convey authentic colors, textures, and all the smallest details of the scanned objects.

Due to the integrated 48MP color camera, the EinScan Libre is capable of making full-color scans, while ensuring flawless indoor and outdoor performance even in bright light. Libre’s portable design with two rechargeable batteries ensures comfortable wireless operation with scanning time of 3 hours. Considering its bright and clear 5.5'' HD OLED screen, intuitive controls, potent software, and long-term standalone operation, the EinScan Libre guarantees a smooth 3D scanning workflow for both beginners and experienced users.

With its hybrid light source and thoughtful design, the EinScan Libre can be used for numerous applications, such as high-quality reverse engineering, manufacturing, 3D modeling, customized products, scanning industrial parts, sculptures, artifacts, human bodies, healthcare, research, education, virtual displays, and more.

Below you can see the examples of highly detailed scans captured with the Shining 3D EinScan Libre.

(Note: the STL files below are what you can achieve after post-processing the raw scans in the mesh-editing software.)

Thanks to its high-resolution 48MP color camera, the Libre scanner provides bright and saturated models with high color fidelity and authentic textures, like this artistic object.

Applications

The EinScan Libre combines advanced laser and infrared technologies, making it perfect for capturing both large objects and intricate details on small parts as well as challenging surfaces like dark and reflective materials. Its versatile scanning modes with full-color capture provide excellent accuracy and detail for a wide range of applications.

• Cultural Creation & Art Customization: Equipped with a 48MP texture camera, the EinScan Libre captures cultural heritage in stunning detail and vibrant color. The markerless laser HD mode delivers highly accurate digitization, preserving legacy artifacts with unmatched precision and true-to-life authenticity.
• Engineering Machinery & Other Transportation: With rapid infrared light scanning, the EinScan Libre effortlessly captures large machinery without the need for markers. This versatile tool is perfect for professionals across industries—from construction to product design—empowering them to tackle diverse projects efficiently with one powerful device.
• Energy & Heavy Industry & Public Utilities: Free from cables and laptops, this versatile scanner lets you move seamlessly across different workspaces. Featuring a 5.5" touchscreen and rechargeable batteries, it makes scanning large parts easier than ever.
• Automotive: The EinScan Libre is designed with exceptional adaptability, handling diverse surface types effortlessly, including challenging reflective and black surfaces. Its advanced Laser HD mode enhances convenience by enabling marker-free scanning, making it a versatile solution for complex materials and detailed scans.

Scanner controls

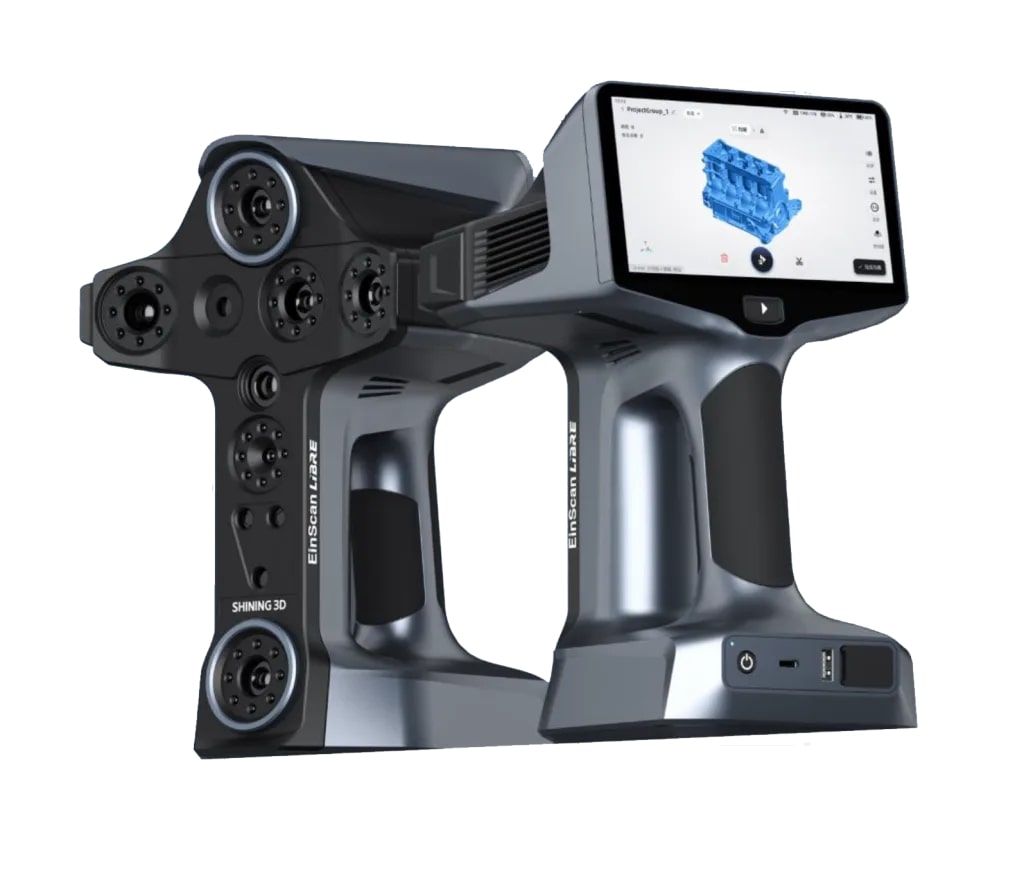

To begin using the EinScan Libre 3D scanner, just turn it on and start scanning, no cables or PC needed. You can see your scans with outstanding clarity on Libre’s large built-in 5.5'' HD OLED touchscreen.

Before the first use, you need to complete the calibration process, following the built-in software prompts. Once you’ve calibrated the device, you can proceed with scanning.

Featuring complete on-device workflow, the EinScan Libre offers a wide range of effective data operations. The full list of available functions includes single-click mesh generation, quick data editing, a data quality indicator, range indicator box, in-project resolution adjustment, working distance adjustment, flexible hybrid alignment modes, precision boost with scale bar, and light & dark UI adaptation for different operation scenarios.

Software

Engineered with USB Type-C, USB 3.0, and lightning-fast Wi-Fi 6 connectivity, the EinScan Libre 3D scanner can rapidly export scans in the most common file formats, such as PLY, OBJ, STL, ASC, and LAS.

Due to its enhanced PC integration, the EinScan Libre delivers smooth performance and flexible workflow without the need for high-spec computers. The scanner boasts multi-tasking capabilities that allow one to go beyond single-threaded operations. Alongside with advanced multi-resolution fusion, the device supports multiple coordinate alignment methods as well as distance, surface area, and volume calculations.

The EinScan Libre model comes with the proprietary EXModel PC software, which is an ultimate solution for 3D data management and post-processing. With the integration of EXScan Libre, one can seamlessly import data to EXModel with a single click after completing a scan. To simplify CAD modeling from 3D scanning to manufacturing, the program provides a comprehensive set of tools that enable you to create professional-grade CAD digital models that are compatible with your CAD software. Overall, EXModel boasts user-friendliness, enhanced flexibility, and increased work efficiency.

What’s in the box

• Shining 3D EinScan Libre wireless all-in-one laser 3D scanner
• Batteries x2
• Battery charging case
• Scale bar
• Adapter
• Calibration kit
• Essential accessories
• Dedicated carrying case
• Quick start guide

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

The Shining 3D EinScan Libre wireless laser 3D scanner is available in gray with black trimmings. Its stylish and compact design makes the device ideal both for beginners and experienced users.

The scanner dimensions are 6.4 x 7.2 x 10.5 in (162 x 182 x 266 mm). It weighs approximately 4 lbs (1.8 kg) (including battery).
