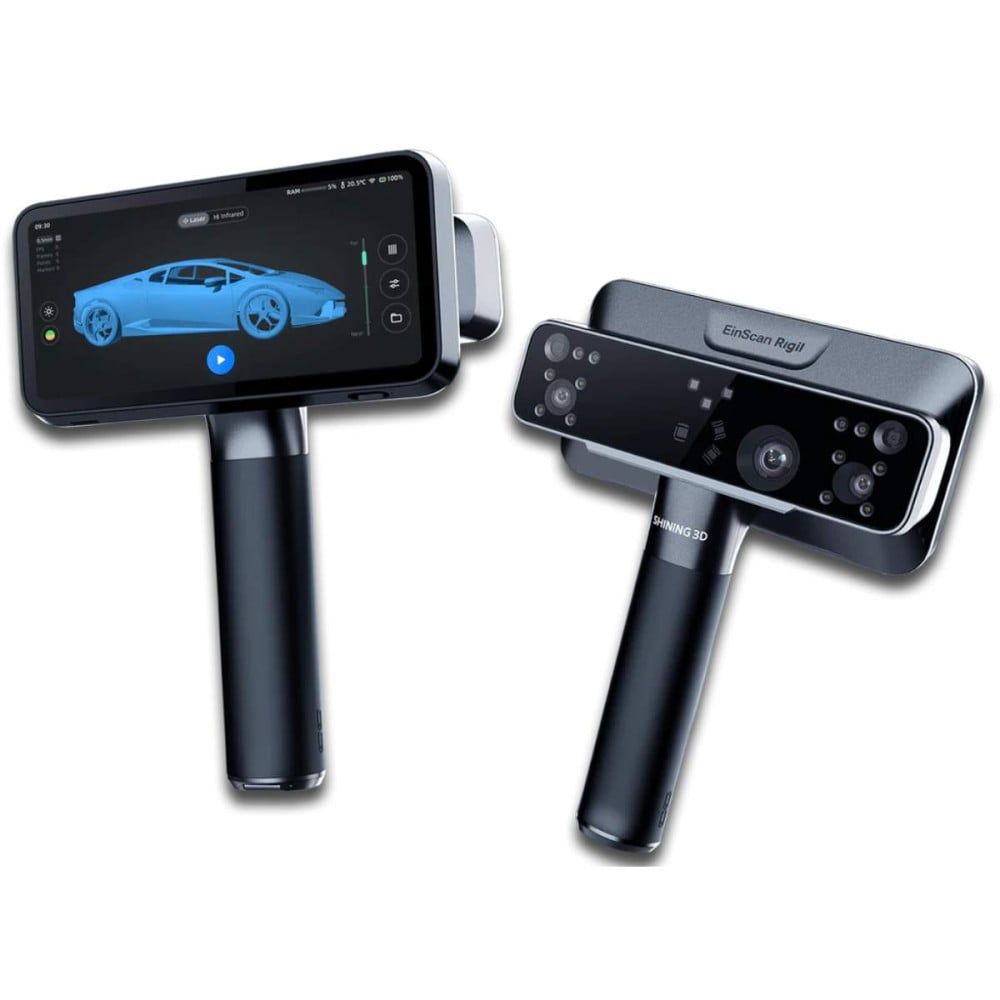

Shining 3D EinScan Rigil - Wireless Laser 3D Scanner

SHINING 3D EinScan Rigil - Wireless Laser Handheld 3D Scanner with 3 Scanning modes

EinScan Rigil is the world's first triple-mode laser 3D scanner, combining high precision, flexibility, and mobility. The innovative 3D scanner with a Wi-Fi module can operate autonomously without a PC, and if necessary, connect to a computer via Wi-Fi 6 or USB-C, providing a choice between speed, data transfer stability, and autonomy. The scanner allows storing and transferring data without a PC. 3D scanning with Rigil truely allows you to fully experience the technological leap of the last decade.

Key advantages of EinScan Rigil

• Three operating modes (standalone, PC connection via Wi-Fi, wired connection)
• Autonomous operation + flexible connectivity
• Hybrid light (blue laser and VCSEL)
• Accuracy and wide range of applications
• Ability to scan without markers quickly and efficiently
• The scanner can be used indoors and outdoors
• Wireless scanning provides high mobility and autonomy
• Includes 2 batteries
• Outdoors support – reliability in any lighting
• Built-in software, full scanning cycle without PC

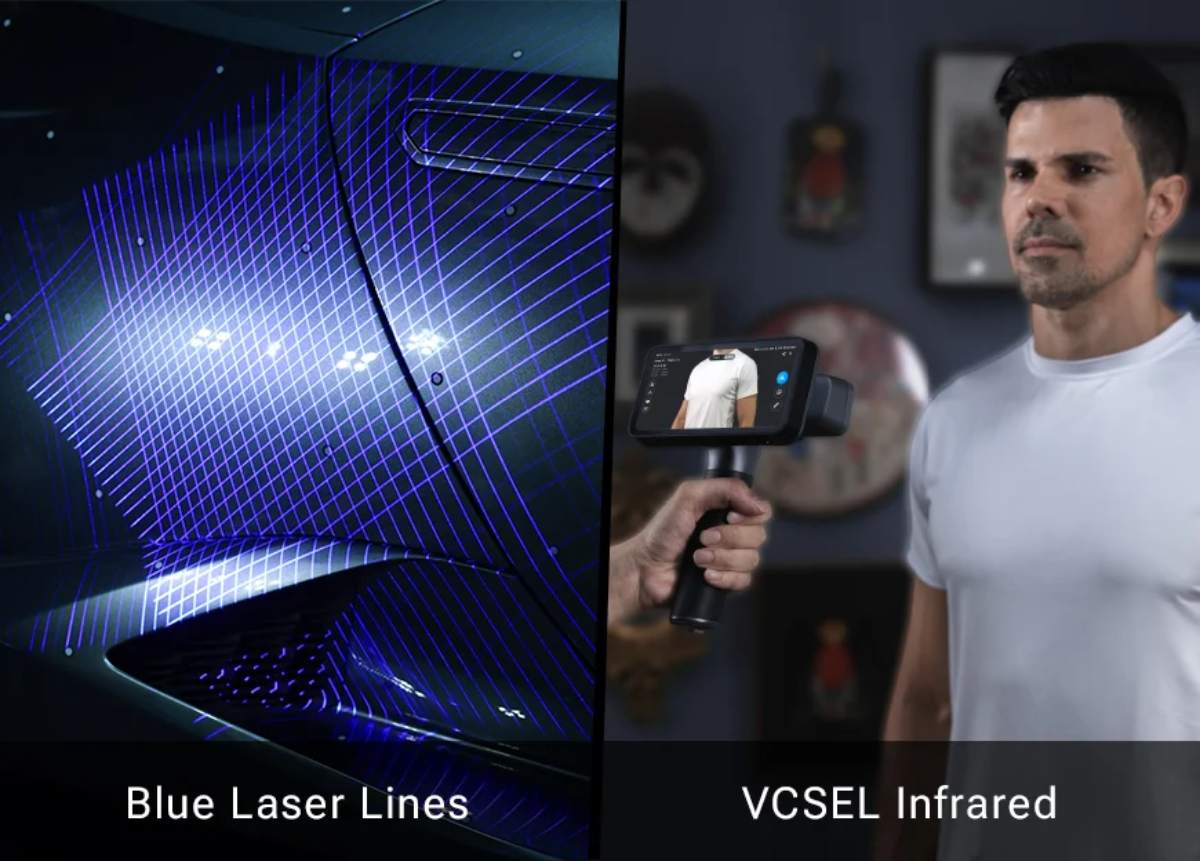

Light sources of the 3D scanner EinScan Rigil

The 3D Scanner is equipped with a hybrid lighting system: a blue laser (405–450 nm) and an IR VCSEL projector, which ensures effective capture of both small details and large objects.

This provides high adaptability to materials — including dark and reflective surfaces — and the ability to scan in bright sunlight without matting spray.

Three working modes of 3D scanning

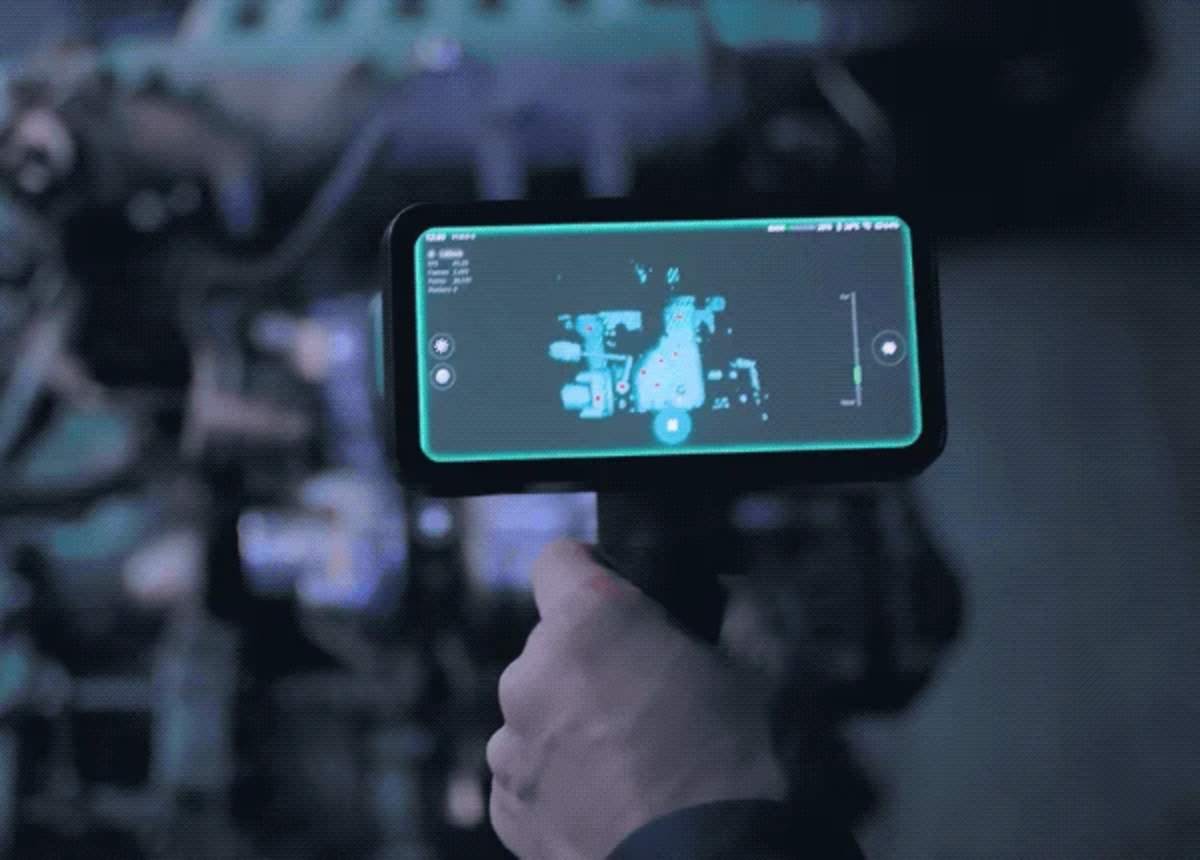

• Standalone: autonomous mode with built-in processing — convenient for outdoor and field work

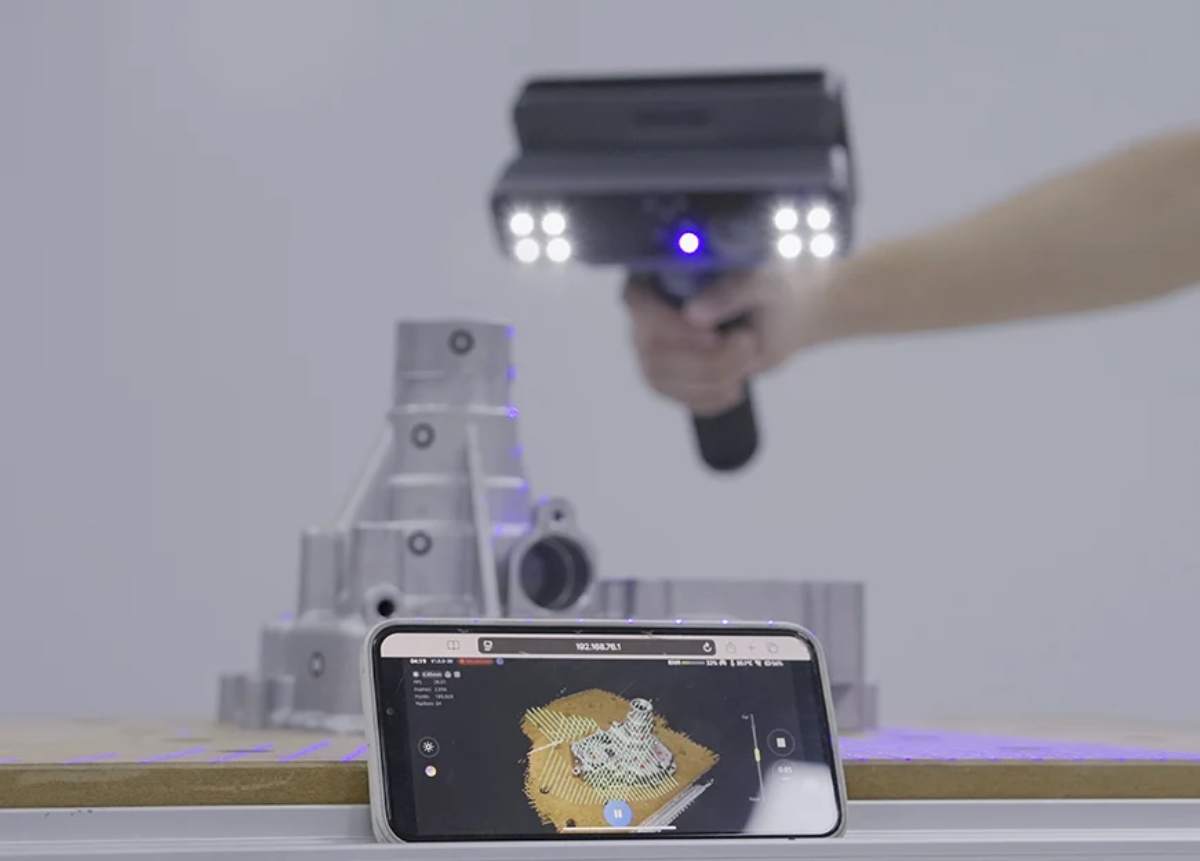

• Wireless PC: Wi-Fi 6 connection — high flexibility without USB cables
• Wired PC: USB-C connection — maximum transfer speed and stability in complex networks

EinScan Rigil: specifications and scanning modes

1. Laser HD

19 × 19 crossed blue laser lines: up to 4,400,000 points/sec, working distance 170–550 mm

7 parallel laser lines: high detail — resolution up to 0.05 mm, speed 940,000 points/s

Volumetric accuracy: up to 0.04 + 0.06 mm/m

2. IR Rapid

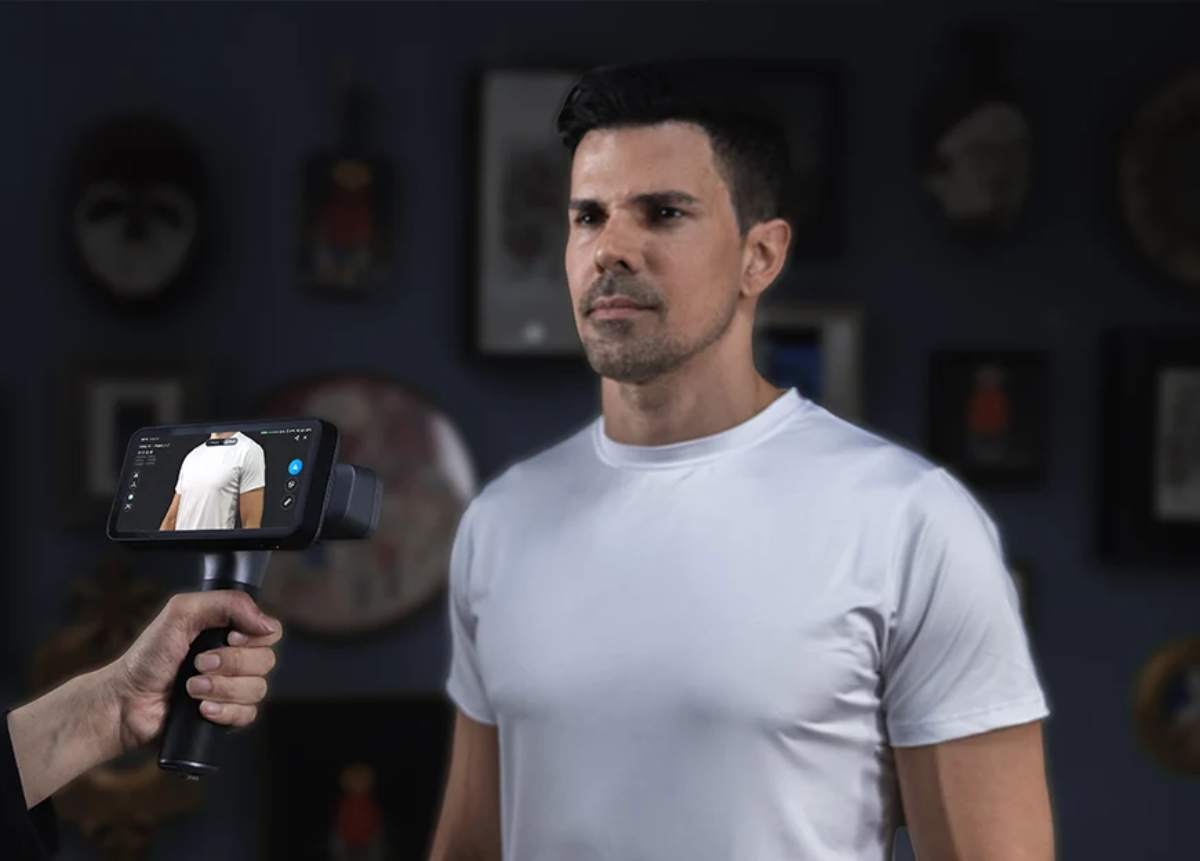

IR VCSEL scanning: up to 1,600,000 points/sec at 30 FPS, distance 160–1500 mm

Volumetric accuracy: up to 0.1 + 0.3 mm/m

Both laser configurations can be switched during scanning, combining fast coverage and high detail in one project.

Color capture and tracking

5 MP color camera: high detail and accurate surface display

Markerless tracking algorithm (Laser + IR): faster than marker scanning, better than IR without markers

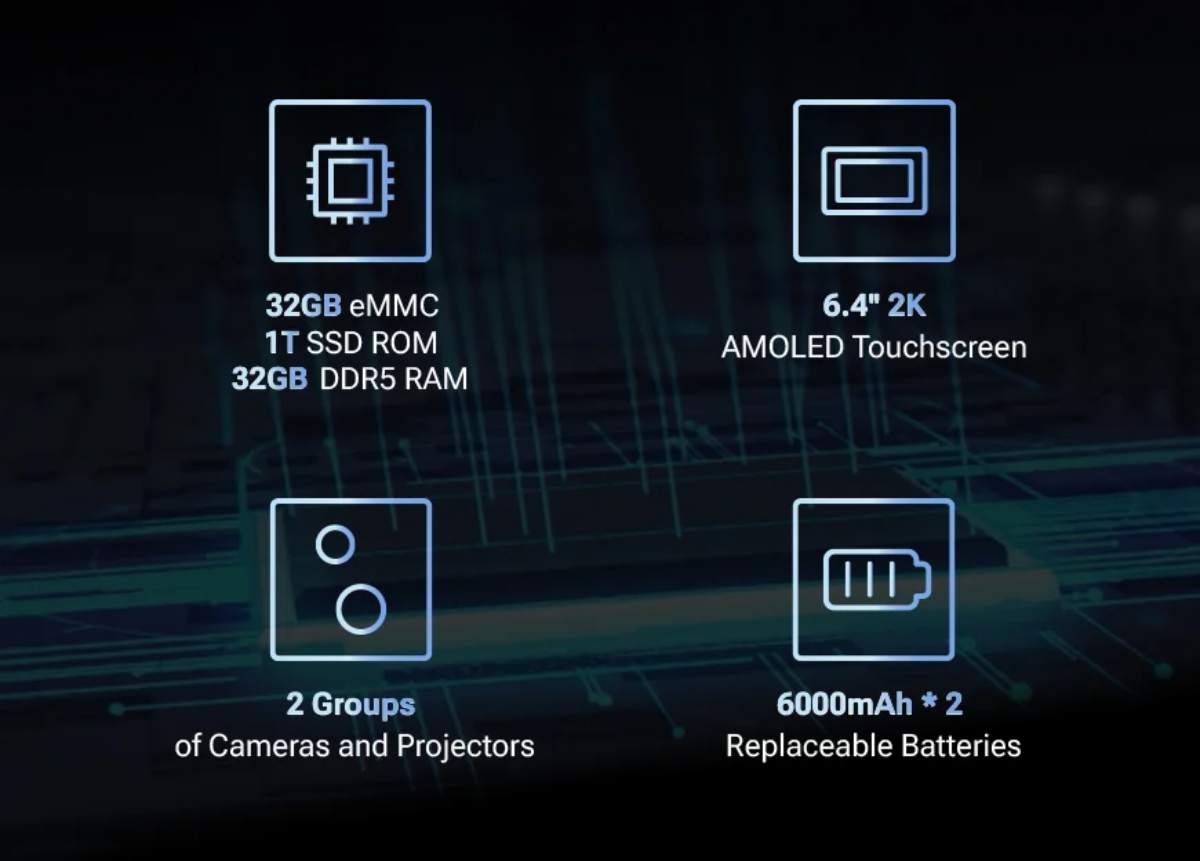

Hardware base: high-quality configuration EinScan Rigil

• CPU: 8-core 2.4 GHz.
• RAM: 32 GB DDR5.
• Storage: 32 GB eMMC + 1 TB SSD.
• Screen: 6.4″ 2K AMOLED touchscreen.
• Power: 2 replaceable 6000 mAh batteries (charging and working simultaneously via USB-C, PD 60W support)
• Weight and dimensions: 870 g with batteries; 233 × 180 × 72.8 mm

Software and compatibility

Built-in EinScan Rigil App: from calibration to export – remote control, screen mirroring to devices, cloud data exchange

For PC – EXScan Rigil: advanced import/export (STL, OBJ, PLY, 3MF, ASC), cleaning, alignment, mirroring, plane, texturing tools

Alignment modes: global markers, markers, features, texture, hybrid.

Compatibility: EXModel (reverse engineering), BlueStar Mapping (texture mapping)

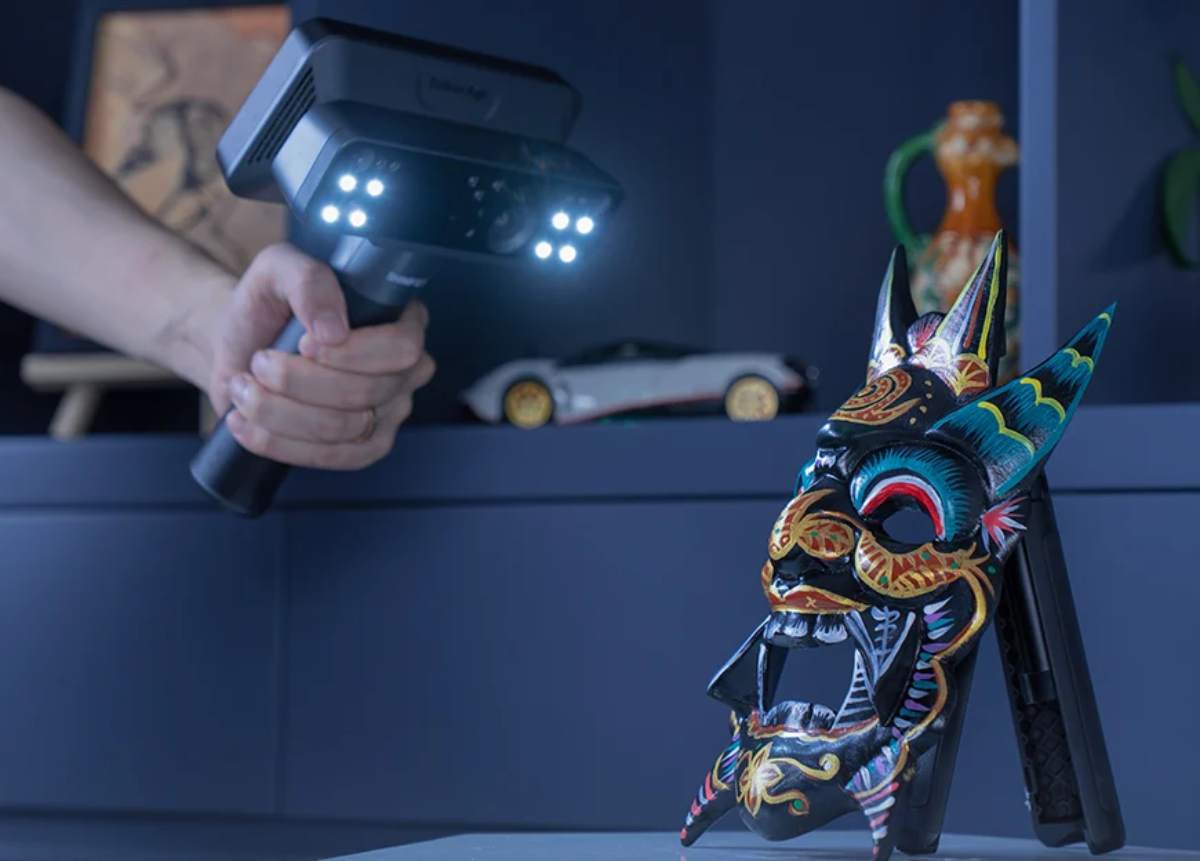

Professional 3D scanner EinScan Rigil

Operating conditions and certification

• Operates at temperatures from –10 °C to +40 °C, reliable in bright light up to 90,000 lux, resistant to rain up to 10 mm/h
• Recommended PCs: Windows 10/11 (64-bit), i7-13700H, NVIDIA RTX 3060 or higher, ≥32 GB RAM

Using the SHINING 3D EinScan Rigil 3D scanner

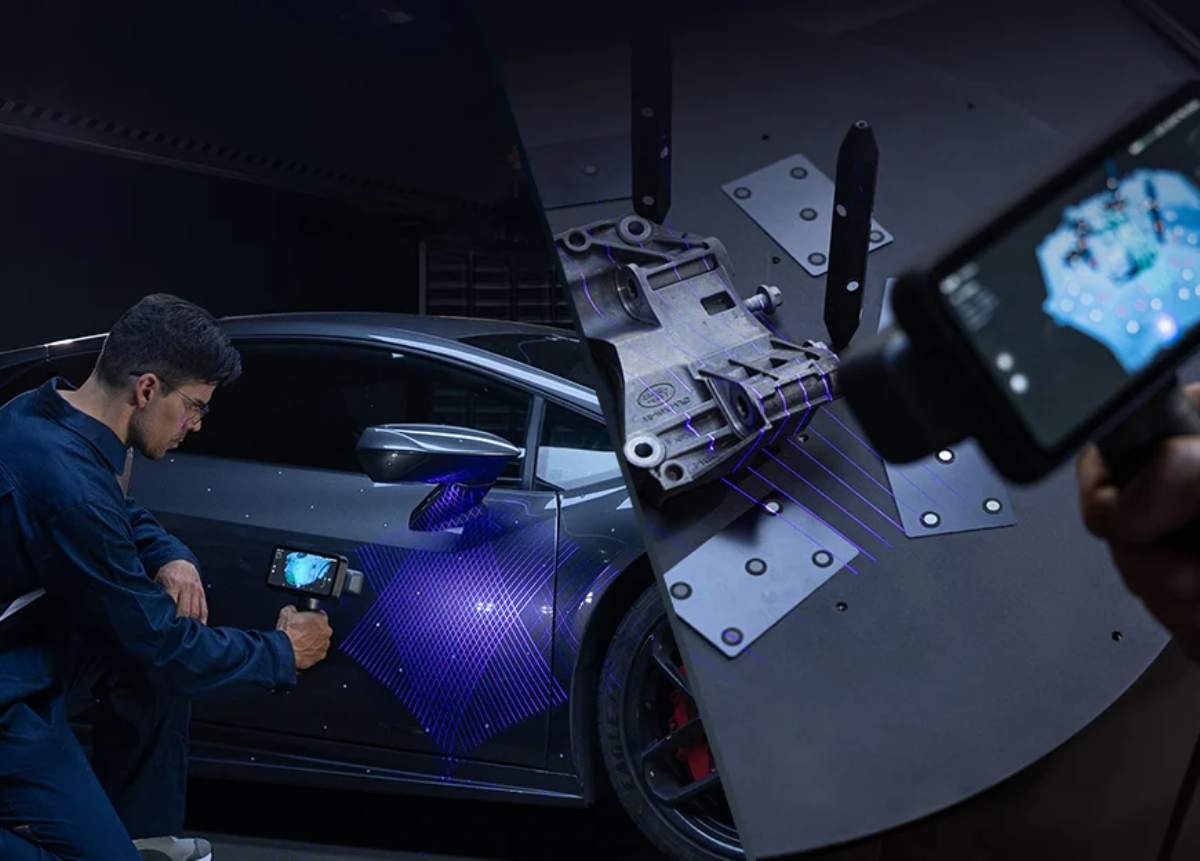

• Car service: aftermarket modification, reverse engineering of parts.
• Cultural restoration: 3D documentation of art objects.
• Research: laboratories, lectures, field work.
• Design and art projects where color, accuracy, and detail are important.

Mobility, autonomy, and built-in software allow the 3D scanner to be used for on-site scanning and quick data processing with minimal PC dependence.

Applications

Automotive

Reverse Engineering

Inspection

Manufacturing

Art & Antique

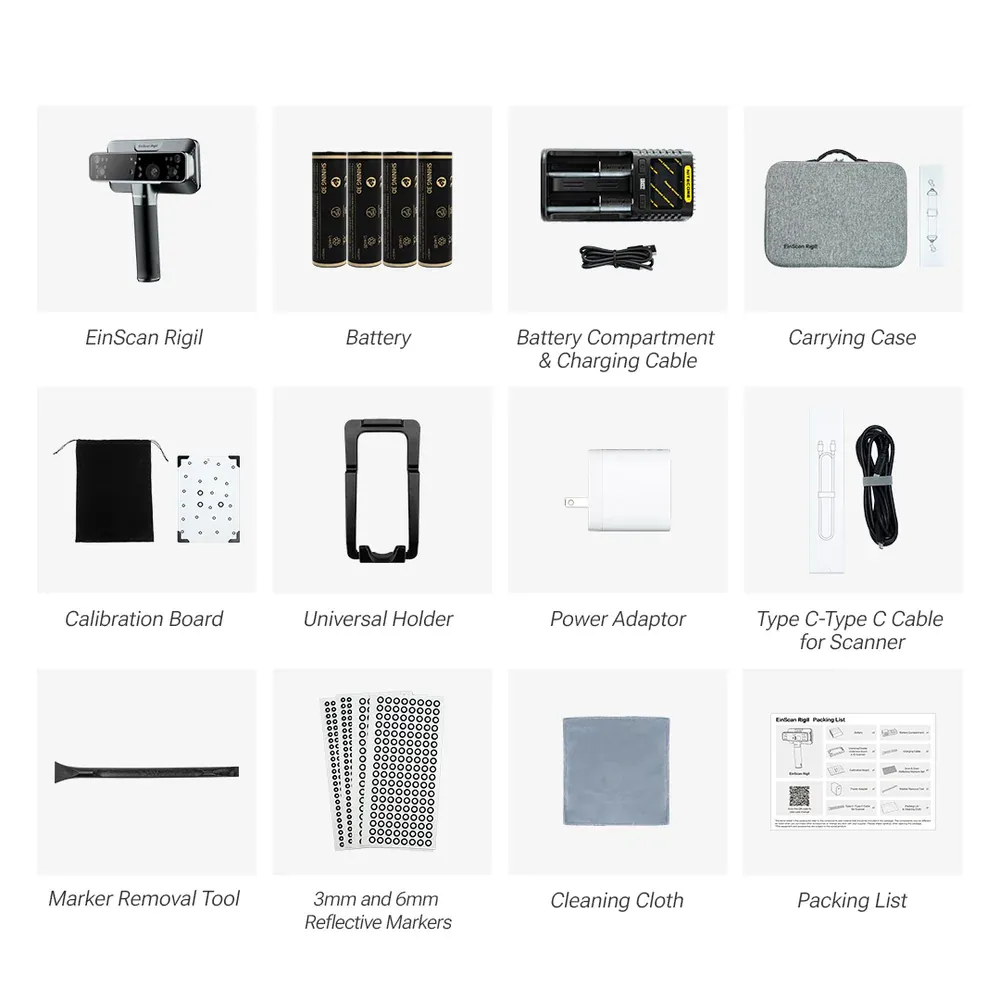

EinScan Rigil 3D scanner package contents

1. EinScan Rigil scanner
2. Removable carrying case
3. Calibration plate and universal holder
4. Power supply + USB-C cable
5. Battery compartment + charging cable
6. Two 6000 mAh batteries
7. Markers (3/6 mm), marker removal tool
8. Cleaning cloth

The package contains everything you need to get started. The EinScan Rigil from SHINING 3D is an excellent choice for professionals seeking a powerful, accurate, and mobile 3D scanner for various tasks. Rigil is suitable for various engineering, automotive, quality control, as well as preserving digital copies of cultural heritage and design.
