Shining 3D EinStar 2 - Wireless 3D Scanner
SKU s3d-einstar-2
AED 4,990
SALE
was AED 5,000 Save AED 10
Price incl. VAT (5%) AED 237.62
Affordable Wireless 3D Scanner with 0.05mm resolution
Out of stock, available for pre-order, Delivered in 2 ~ 4 Weeks
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

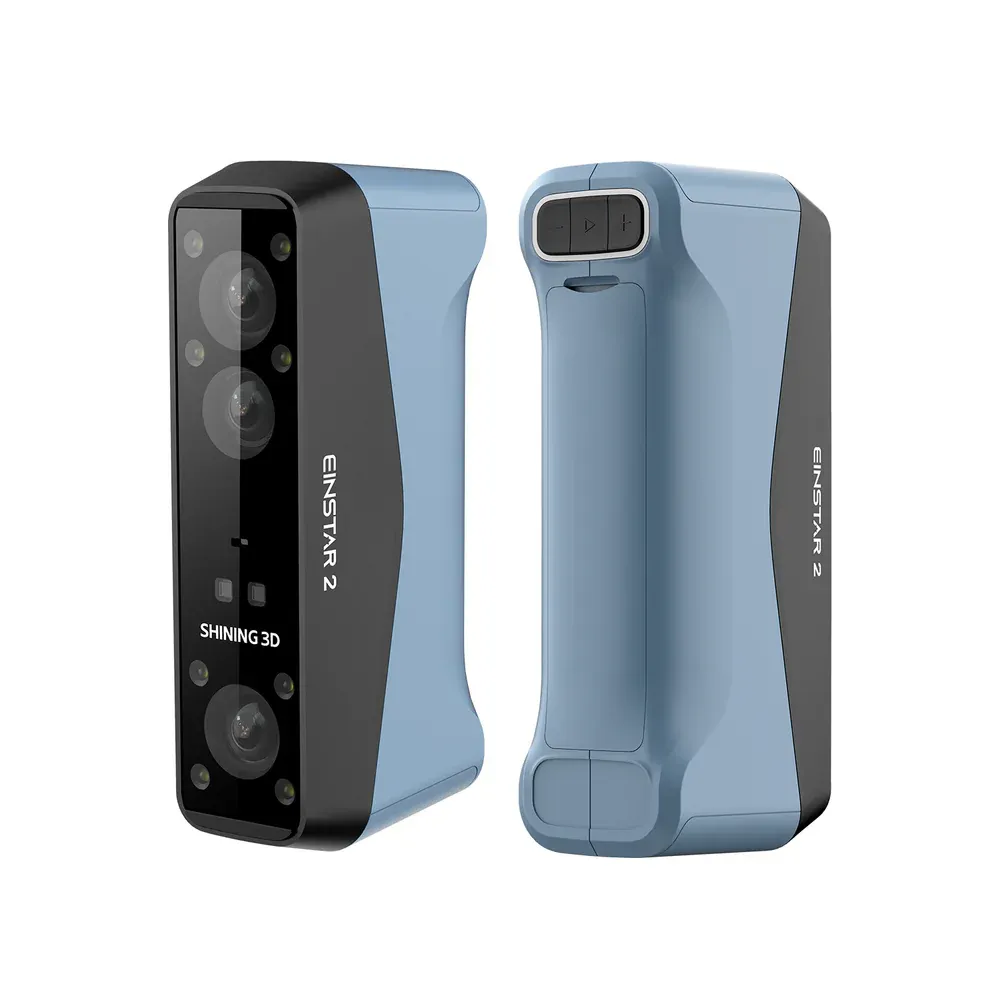

Shining 3D EinStar 2 - Wireless 3D Scanner
Product Details
Brand: SHINING3D
New Shining 3D EINSTAR 2 is an affordable WIRELESS handheld 3D scanner, makes high-quality 3D data available to everyone. Einstar 2 delivers a major upgrade to the EINSTAR line. Featuring hybrid light sources (Blue Laser line and IR Rapid VCSEL), this portable 3D scanner combines wireless freedom with vivid full-color capture and marker-free scanning for true-to-life 3D models.
Technical Specifications - Shining 3D EinStar 2
| Scan Mode | Laser HD | IR Rapid |
|---|---|---|
| Light Source | 17 Blue Laser Parallel Lines | IR VCSEL |
| Resolution | 0.05 ~ 10 mm | 0.2 ~ 10 mm |
| Scanning Speed | 2,500,000 points/s | 1,440,000 points/s |
| Working Distance | 100 ~ 600 mm | 160 ~ 1400 mm |
| Max. FOV | 490 × 580 mm | 1170 × 1385 mm |
| Alignment Mode | Global Marker / Markers | Global Marker / Markers / Features / Texture / Hybrid |
| Minimum Scan Volume | 10 × 10 × 10 mm | 50 × 50 × 50 mm |
| Camera Resolution | 3D: 2MP × 2 ; Texture: 2.3MP | |
| Output Formats | STL; OBJ; PLY; 3MF; ASC | |
| Laser Class | Class 2 | |
| Outdoor Scanning Environment | Below 110,000 Lux | Below 70,000 Lux |
| Operation Conditions | -10° ~ 40° | |
| Interface & Power Source | USB Type-C; Battery: 5500mA × 1; Supports 60W-PD3.0 Charger | |
| Dimension | (H × D × W): 130 × 37 × 61 mm / 5.12 × 1.46 × 2.40 in | |
| Net Weight | 420g / 0.92 lbs (with batteries), 348g / 0.77 lbs (without batteries) | |
| Certifications | CE, FCC, ROHS, WEEE, FDA, SRRC, IP50 | |
| PC Configurations | Win11, Professional 22H2 (64-bit); Graphics: NVIDIA GeForce RTX 3060 Laptop GPU or above; VRAM: 6 GB or above; RAM (Minimum): 32 GB DDR5 dual-channel; RAM (Recommended): 64 GB or above DDR5 dual-channel; Interface: USB 3.0; Processor: 13th Gen Intel® Core™ i7-13700H or above |
|
