Phrozen Sonic Mighty Revo 14K - Resin 3D Printer

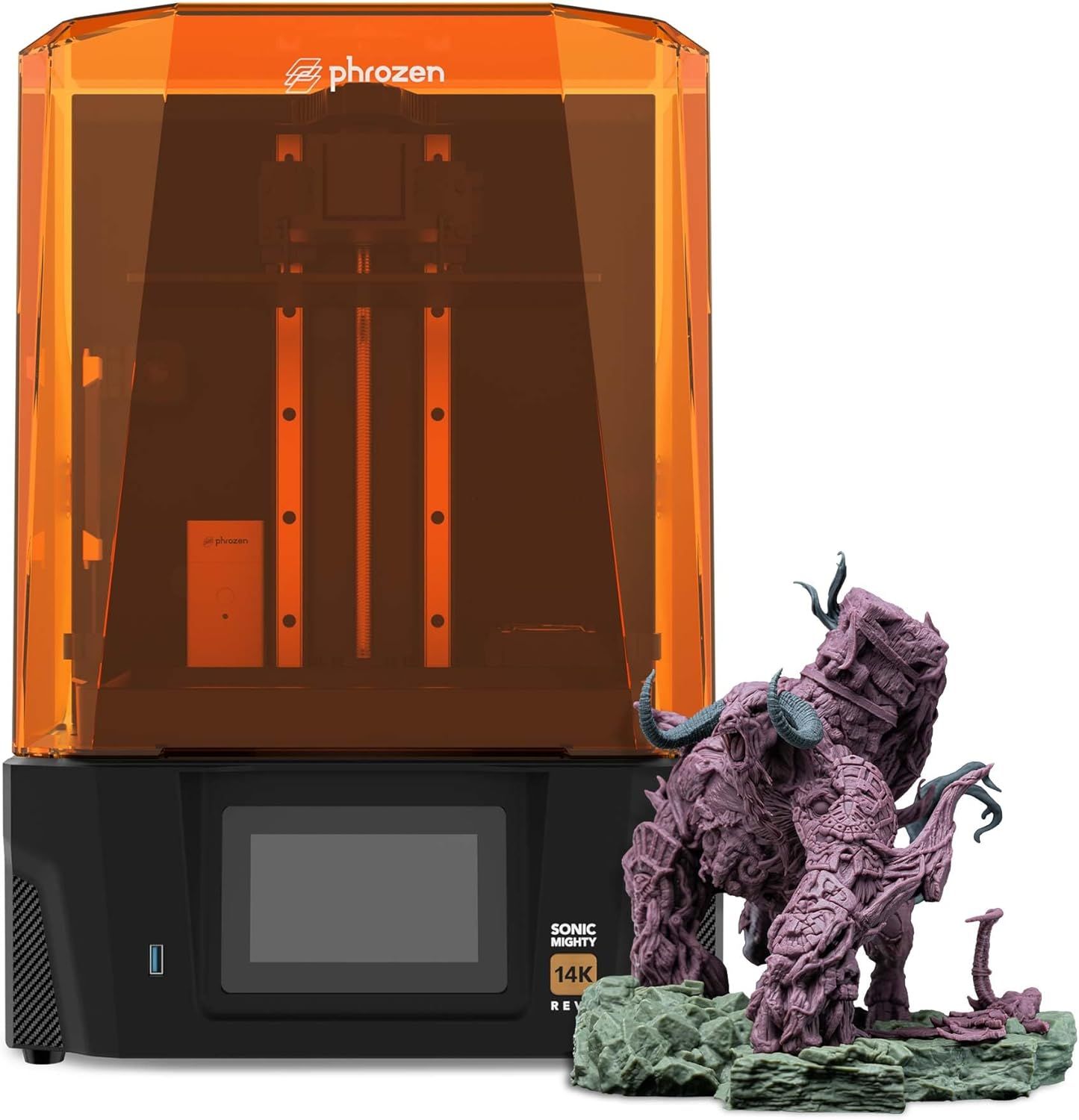

Phrozen Sonic Mighty Revo 14K LCD Resin 3D Printer

Phrozen Sonic Mighty 14K Revo is the new high-detail 3D printer with an extremely great resolution of 14K to create high-precisely larger models. The new 3D printer is perfectly balancing compact size with improved productivity. Sonic Mighty 14K Revo comes with auto-leveling, residue detection, and failure detection. It is also compatible with the Phrozen Pump & Fill Connector!

• Print big and more in 14K resolution - incredible 16.8x24,8㎛ resolution enables everyone to create crisp and sharp prints effortlessly.

• 10.1” X 23.5cm, maximized productivity - the unit’s 10.1” LCD paired with 23.5cm dual linear rails will seriously boost your work efficiency.

• High productivity, streamlined design - despite its powerful specs, the Sonic Mighty 14K has a footprint similar to other regular compact printers and is easy to store virtually anywhere. This frees up room for any other equipment you may need in your workspace.

• Built-in heater - maintain printing temperature at an ideal 30°C for a higher success rate
• Pump & fill connector - compatible with the Phrozen Pump & Fill automated resin feeder
• Auto-leveling - Sonic Mighty 14K comes equipped with an automatic zero-point detection that reduces the need for manual adjustments typically associated with the Z0axis calibration process
• Residue detection - when enabled, the printer will stop printing once it detects any foreign objects between the building plate and release film upon the first layer of printing
• Failure detection - when enabled, the machine will promptly detect any possible abnormalities during the printing process
• Phrozen GO Camer App - monitor printing progress in real-time, at all times
• Plug-in Air Purifier System - USB-powered air purifier system for a comfortable printing environment
• Exhaust vent - connect your printer with the external air ventilation of a large air purifier system for a safe printing environment
• Sealed motor structure - prevent any resin leakage from seeping into the printer's interior
• Optimized LCD replacement setup - unplug the LCD ribbon cable without removing the front shell, making future LCD replacement more convenient
• Great premium build - light with lift-up lid

Technical Specification

• System: Phrozen OS
• Operation: 5" in Large Touch Panel
• Slicer Software: CHITUBOX V2.0
• Connectivity: USB | Ethernet | Wi-Fi
• Design: Technology Resin 3D Printer - LCD Type
• Light Source: 405nm ParaLED Matrix 3.0
• XY Resolution: 16.8x24.8 µm
• Layer Thickness: 0.01 mm
• Maximum Printing Speed: 70 mm/hr
• Power Requirement: DC 24V；5A
• System Power: 120W
• Printer Size: 35.3 x 34.5 x 51.7 cm
• Print Volume: 22.3 x 12.6 x 23.5 cm
• Printer Weight: 18 kg

*All specifications have been tested in a laboratory. Please note that certain specifications may be subject to change without prior notice.
